back  ||  Davenport Main

Ash Grove Lime & Portland Cement Co. #3 - c/n 1805 - destined for Ash Grove, Missouri
Built 07/1920 - gauge either 28" or 36" (?) - 0-6-0T
13pd

Built with side and under boiler water tanks (right front fill).

Photo & c/n courtesy of Alton Underwood

Black Diamond Coal Co. #1 - c/n 1840
Built 01/1921 - Std gauge - 0-6-0T
13pd

The company's base of operations was Dallas, Iowa
The image appeared in 1922 edition of The Mining Catalog published by Keystone Consolidated Publishing Company Inc
Cementos Hidalgo S.A. - c/n 1912 - destined for Monterey, Mexico
Built 12/1922 - 36" gauge - 0-6-0T 13pd

Photo & c/n courtesy of Alton Underwood
Sr. Don Estabend de la Rama - c/n 1839 - destined for Negros Is, Philippines
Built 10/1920 - 24" (?) gauge - 0-6-0T 13d

Photo & c/n courtesy of Alton Underwood

Note: The roster notes this company as owning two Davenport geared locomotives.  This one at 24" gauge and the other (c/n 1859) at 36" gauge.  It is unknown if this is an error in the roster or if the company had two railways with different gauges.
Sr. Don Estabend de la Rama - c/n 1859 - destined for Negros Is, Philippines
Built 2/1921 - 36" gauge - 0-6-0T 13pd

Photo & c/n courtesy of Alton Underwood
G. B. Railway #2 - c/n ?
0-6-0T

This image appeared in an advertisement on page 146 of the November 6, 1920 issue of American Lumberman.

Since this company name does not appear on the Davenport rosters we have, we are uncertain if it ever exited or this particular locomotive was built.   However, the fact that images of other Davenport geared locomotives appearing in other publications have been located in our rosters, lends credence to the possibility this was a real company and the locomotive was built.  Since the image appeared in a lumber related publication, if the company exists, it is probable it was in or related to the lumber business.    Please e-mail us if you know complete of this company and/or locomotive.
H. A. Railroad #16 (Abe Hart)- c/n 1798 - destined for Sandborn, Indiana
Built
07/1920 - Std gauge - 0-6-0T & T 13pd
E-mail me if you know what the "H. A." represents in the name.

Photo & c/n courtesy of Alton Underwood
Hawkeye Quarries Co. #5 - c/n 1755 - destined for Brandon, Iowa
Built
04/1920

Photo & c/n courtesy of Alton Underwood
R.G. Hill & Co. #4 - destined for Earle, Arkansas
Built  08/1920 -  36"  gauge - 0-4-0T
13d

Photo & c/n courtesy of Alton Underwood
Hua Sheng Trading Co. - destined for Tientsin, China
Built  01/1922 -  24"  gauge - 0-4-0T
13d

Two 24" gauge, 0-4-0T locomotives were built for this company on 1/1922.   They were c/n 1809 & 1810.  This image appeared in "The Tenth Edition Davenport Catalog" without specifically indicating which locomotive it represented.
Johannesburg Mfg. Co. #1 - c/n 1914 - destined for Johannesburg, Michigan
Built  7/1922 - Std gauge - 36 tons - 0-6-4T - saddle tank.
11d

Note the 4 wheel trailing truck beneath the entry door of the crew cab (barely visible).
Photo courtesy of Alton Underwood

Kansas Chemical Mfg. Co. #2 - c/n 1761  - destined for  Moline, Kansas
Built 12/1919 - HC24" gauge  - 8"x12" cylinders - 0-6-0T
13pd

Photo & c/n courtesy of Alton Underwood

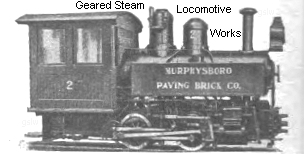

Murphysboro Paving Brick Co. #2 - c/n 1808
Built 10/1920 - 24
"  gauge - 0-4-0T
13d

The company's base of operations was Murphysboro, Illinois
The image appeared in the October 4, 1922 issue of  "Roads and Streets"

Solvay Process Co. #2 - c/n ???? - destined for Moline, Kansas
Built with side and under boiler water tanks (right front fill) - 0-6-0T

280p

0-4-0T  with "front fill" under boiler water tank.

Image 280p

.
